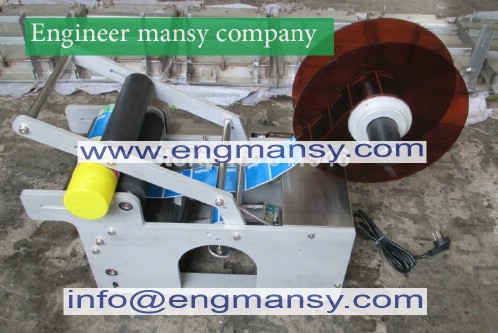

Semi-Automatic Round Bottle Labeling Machine model 831 Engineer mansy brand
Application Semi-Automatic Round Bottle Labeling Machine model 831 Engineer mansy brand
1, round bottle, round cans, cylindrical sticker labeling
2, applies to PET bottles, plastic bottles, glass bottles, metal bottles, round bottle labeling
3, widely used in cosmetics, beverages, food, pharmaceutical and other industries, and greatly improve the productivity and quality of labeling
Features Semi-Automatic Round Bottle Labeling Machine model 831 Engineer mansy brand
A wide range of application, to meet the 12-90mm diameter range of cylinder labeling
Labeling accuracy is high, the tag end to end local deviation less than ± 0.5mm
3, clever extrusion device material, simply put the workpiece, and auto-complete labeling
4 card position adjustment, simple the different workpiece labeling switch
5 timing belt traction, greatly improving the mechanical stability
6, desktop design, lean, compact, powerful
7, after anodized aluminum bracket and advanced computer white electric box, nice
8, advanced electric eye, objects, high tag detection sensitivity.
Technical parameters
Power: 220V 50HZ (We can provide 110V as optional service)
Motor power: 40w
Labeling accuracy: ± 0.5mm (excluding tag workpiece error)
Speed of label dispense: 3-15m/min
Outside diameter of label rolls: less than 270mm
Inner diameter of label rolls: 76mm
Workpiece size: diameter 12-90mm
Minum label length: 15mm
Machine size: 650 × 450 × 450mm
Machine weight: 20 kg
Note: this machine don’t available for transperent labels, but we can tailor the solution, please contact us
