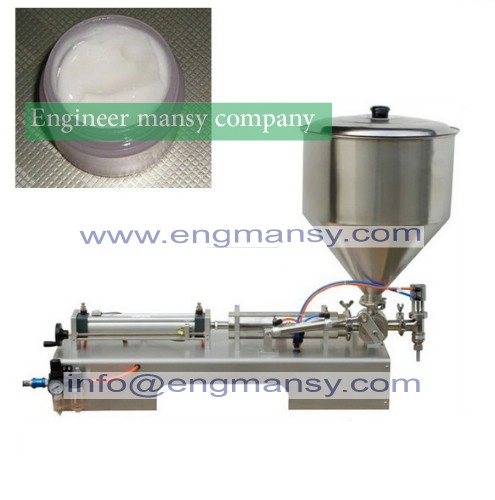

Semi Automatic Piston Peanut Butter Filling Machine Model 404 engineer mansy international mark

الوصف

Semi Automatic Piston Peanut Butter Filling Machine Model 404 engineer mansy international mark

Features Certificate Semi Automatic Piston Peanut Butter Filling Machine Model 404 engineer mansy international mark

This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.

1.Reasonable design, compact shape, simple operation

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application Semi Automatic Piston Peanut Butter Filling Machine Model 404 engineer mansy international mark

Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.

Principle Semi Automatic Piston Peanut Butter Filling Machine Model 404 engineer mansy international mark

series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of  materials, and magnetic reed switch control cylinder itinerary can be regulated filling

. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements..

. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy..

Technical Data Semi Automatic Piston Peanut Butter Filling Machine Model 404 engineer mansy international  mark

Machine model	404 a	404 b	404 c	404 d
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806× 180 ×690mm	880×230 ×665mm	880× 230 ×665mm	1065 ×230 ×665mm
Machine weight	30 Kg	35Kg	40Kg	45Kg
