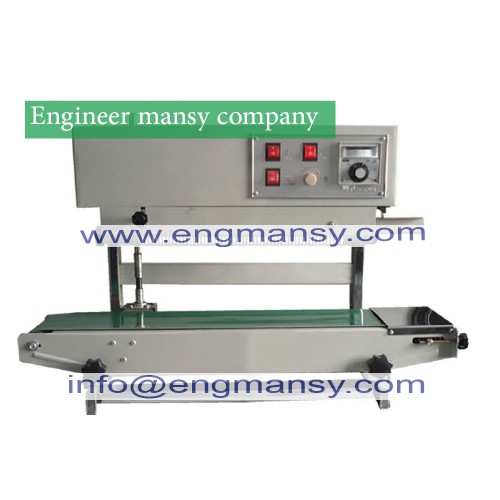

Pumping Ink Roller continuous sealing machine Food exhaust continuous sealing machine automatic sealing machine model 303 Engineer mansy mark
Product Description: Pumping Ink Roller continuous sealing machine Food exhaust continuous sealing machine automatic sealing machine model 303 Engineer mansy mark
series ink printing continuous sealing machine can automatically continuous sealing plastic film a variety of materials, the use of solid ink printing colored labels, with a suitable R- type or T-type arrangement of dual- use printing wheel, can be printed R type the word on the 4th line (PT18), or three lines on the 5th word (PT10.5), can also be configured as needed counting device. 303 model in which self-sealing and printing labels while pumping function is provided.
Technical characteristics Pumping Ink Roller continuous sealing machine Food exhaust continuous sealing machine automatic sealing machine model 303 Engineer mansy mark
1, using innovative design and advanced manufacturing technology, design is more perfect and reasonable.
2, temperature control, adjustable temperature.
3, stepless speed.
4, ink printing clear, colors, instant dry while printing, strong adhesion.
Scope:
This series of ink printing plastic film continuous sealing machine for sealing small packages.
Technical parameters Pumping Ink Roller continuous sealing machine Food exhaust continuous sealing machine automatic sealing machine model 303 Engineer mansy mark
| Model | 303 |
| Power supply voltage (V / Hz) | AC 220/50 110/60 |
| Motor Power (W) | 50 |
| Suction pump power (W) | 1200 |
| Electric power (W) | 220×2(300×2) |
| Printing Heating Power (W) | 40×2 |
| Sealing Line Speed (m / min) | 0-12 (0-16) |
| Sealing Line Speed (m / min) | 12 |
| Temperature range | 0-300 |
| Temperature range | Solid ink roller |
| Sealing Center to Conveyor distance (mm) | 10-40 |
| Conveying table size (L × W) (mm) | 1065×205 |
| Conveyor single maximum load weight (kg) | ≤1 |
| Conveyor total load weight (kg) | ≤3 |
| Dimensions (L × W × H) (mm) | 1065×550×900 |
| Weight (kg) | 75 |
