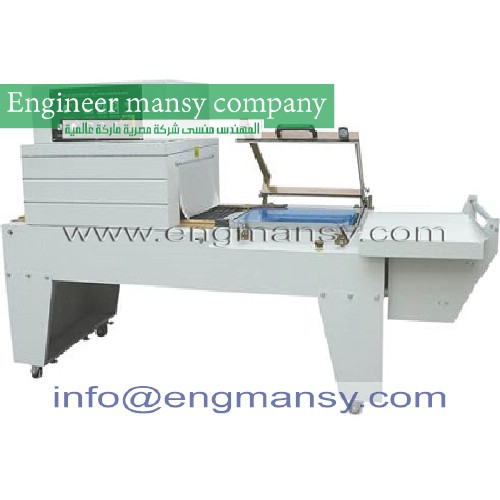

box wrapper packing machine Model 107 engineer mansy brand
Techinical parameters of box wrapper packing machine Model 107 engineer mansy brand
| Model | 107 Engineer Mansy Brand |
| Power supply | 380V/3Phase / 50-60HZ |
| Heater power | 5.0KW on start only , adjustable |
| Seal-cut time | 0-1 seconds, adjustable |
| Max. sealing dimension (L*W) | 450*350mm |
| Max. packing dimension (L*W*H) | 450*350*200mm |
| Machine size (L*W*H) | 2630*790*1440mm |
| Machine weight | 220KG |
| Packing size | 2070*870*1480mm |
| Price | 700 $ |
Product description of box wrapper packing machine Model 107 engineer mansy brand
1.Adopt high temperature and sticky free L bar sealing knife,sealing action without
Smocking and burned
- Sealed part is tidy and clean
- Conveyor belt is adjustable on the hight by hand wheel
- Adjustable film layer with needle device, easy to fit different size films with max width of 550mm
- Double electromagnets can pull sealing frame and also increase sealing pressure
- Model 107 has a manual/auto switch,when choose auto function, it can run automatically according to the
time set, whole sealing action controlled by cylinder automatically,with fast packing speed.
